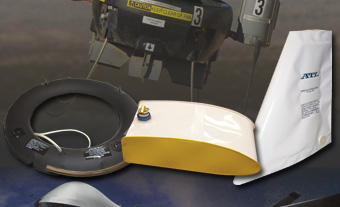

ATL UAV Fuel Bladder Tanks
ATL UAV Fuel Bladder Tanks
ATL UAV Fuel Bladder Tanks
ATL UAV Fuel Bladder Tanks
ATL UAV Fuel Bladder Tanks
ATL has been building safety fuel cell bladder tanks for 40 years and UAV/ROV bladder cells for over 20 years!
Visit ATL at AUVSI's Unmanned Systems Show in Orlando, FL!

ATL proudly produces flexible fuel cell bladder tanks for aircraft, drones, rotorcraft, missiles, ROV's & UAV's. These tough, light-weight flex-tanks resist motor gasoline, diesel, avgas and JP fuels including JP-10 and JP-TS. Other bladders are available for hydrogen, propane and alcohol fuels.

ATL's fuel cell installations can be designed as ventless collapsing "diaphragms" or as vented non-collapsing "liners."

Flexible bladder materials from ATL span the range from super-light .010" (.25 mm) thickness to .040" (1.02 mm) "crashworthy" and then to .085" (2.16 mm) self-sealing variety.

Modern CAD systems create soft tooling or "e-templates" which enable ATL to offer prototype bladders within 2 weeks, and ramped-up production within a month.


ATL's Customers Include:
AAI General Atomics NSWC
Aero Mech General Dynamics Pratt & Whitney
Arcturus General Electric Raytheon
Aurora Honeywell Ricardo UK
BAE Jacobs Robertson
Bell Textron L3 Scaled Composites
Boeing Livermore Labs Scripts Inst.
Carnegie Mellon Lockheed Martin Sikorsky
DARPA NASA TACOM
DRS NAVMAR U.S. Army
Force Protection NAWCAD U.S. Marine
Galileo Avionica Northrop Grumman Woods Hole
Features of ATL UAV/ROV Fuel Bladders:
  • Fully collapsible for easy installation/removal
  • Available in any size, geometry, or material
  • Electronically templated; Near zero tooling cost
  • Light weight and thin-walled for greater fuel capacity
  • Total fuel scavenging options
  • Low fuel diffusion rate; can surpass Mil-DTL-6396F
  • CAD/CAM production for accuracy and reproducibility
  • Light weight composite fittings and flanges
  • Resistant to Avgas, Mogas, JP4, 5, 8, 10; Jet A, B; Kerosene,
    Bio-Ethanol E10, Diesel, Bio-Diesel, Bio-Butanol B10 and Bio-Jet
  • Special bladder materials available for rocket/missile/torpedo fuels. Specifically: hydrogen peroxide, hydrazine, Otto Fuel II, HAN fuel, JP-7, methanol, nitromethane, propane, butane and others
  • Baffles, vent valves, quantity gauges, drains, collectors etc. fully integrated
  • General Atomics Predator Award for Quality and On-time delivery
  • Can serve as secondary fuel containment if wing or fuselage is cracked or punctured
  • Immune to shock, impact, vibration, launching, retrieval and hard landings
  • Operates to 60,000 ft. within temperatures of 200°F (95°C) and
    -60°F (-50°C)
  • Modest cost, long life, low-to-zero maintenance
  • Safety foam explosion-proofing system option
Design and Engineering Systems at ATL:
  • KeyCreator
  • Auto CAD
  • CATIA
ATL's Quality System:
  • ATL-9000
  • Mil-Q-9858-A
  • Mil-I-45208
  • ISO-9001-2008
ATL's Fuel Tank Variety:
  • Light-weight bladders
  • Self-seal bladders
  • Aluminum welded tanks
  • Roto-molded polymer tanks
  • Carbon fiber tanks
ATL Fuel Bladder Accessories:
Sumps Filters Anti-stat Foam
Drains Surge-tanks Refuelers
Flanges Flop tubes Hangers
Piccolo tubes Vent valves UID
Baffles Trap doors Weirs
Fill caps Gauging Quick-connects
Dry-breaks Hoppers Wire Harnesses
ATL
ATL-794-A White, “Skytec”
Most popular
.013"(0.3mm) thick
Rubberized nylon
ATL-794-A
ATL-826-A "Bantam"
FT3
.026" (0.7mm) thick
Aramid Reinforced
ATL-826-A
ATL-516-40 Yellow
“Skytec”
.040” (1mm) thick
Conformal
ATL-516-40
ATL-895-A Translucent, “FluoroCell”
FAA-TSO compliant
Hi-temp, All-fuel
.016" (0.4mm) thick
ATL-895-A
ATL-893-B Black
“Fluoro Cell”
Semi-self-seal
.050” (1.25 mm) thick
ATL-893-B
ATL-854-B H-D Rubberized
Nylon, MIL-T-52983
DOD-ATPD-2266
.065" (1.65mm) thick
ATL-854-B
ATL-894-A Tri-Ax Aramid
Omni-Directional Strength
ATL-894-A
ATL-565 Black, “Saver Cell”
Molded Polymer
.100” (2.54mm) to
.25” (6.35mm) thick
ATL-565
ATL UAV/ROV Refueler:

Rotate with your cursor!

Please click here to download a 3D movable PDF of ATL’s New UAV/ROV Refueler.(May take up to 15 seconds to load.)

This 3D PDF file can only be viewed in Adobe Acrobat version 8.0 or later. Click here to download the latest FREE version.

ATL's new UAV/ROV refueler

REFUELER FEATURES:

  • 32 gal. (125 liter) explosion-proof tank
  • H-D 2-wheel hand-truck
  • 12V electric fuel pump
  • Capless battery with charger
  • Manual hand pump
  • Filter and shut-off valve
  • H-D fuel delivery hose
  • Pistol-grip nozzle
  • Fire-wall and extinguisher
  • Grounding/banding strap
  • Safety vent and relief valves
  • Handles: Jet, Diesel, Gasoline, Avgas and all Bio “E” fuels
ATL's Electronic Tooling:
Here is a typical ATL fuel cell bladder e-template...

ATL Tooling Template

Totally defined, thoroughly precise, and continuously repeatable…
cell after cell after cell!

Click Here to View Other Flexible Composite Products From ATL.
